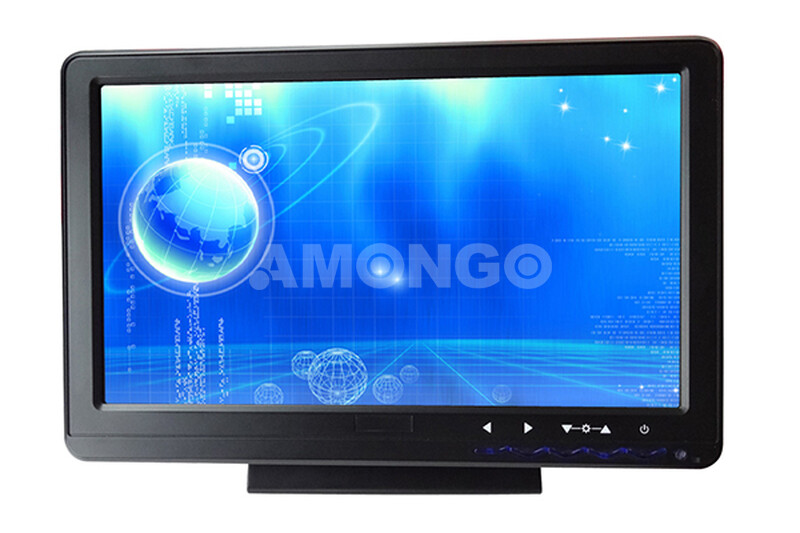

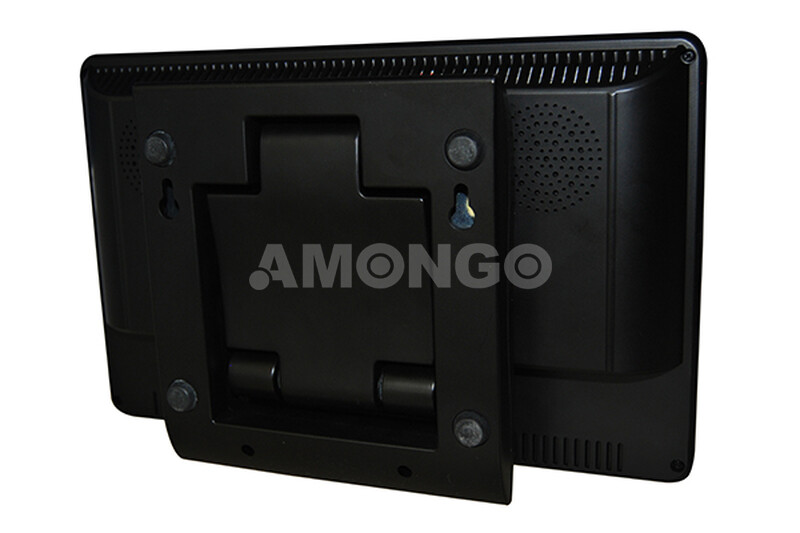

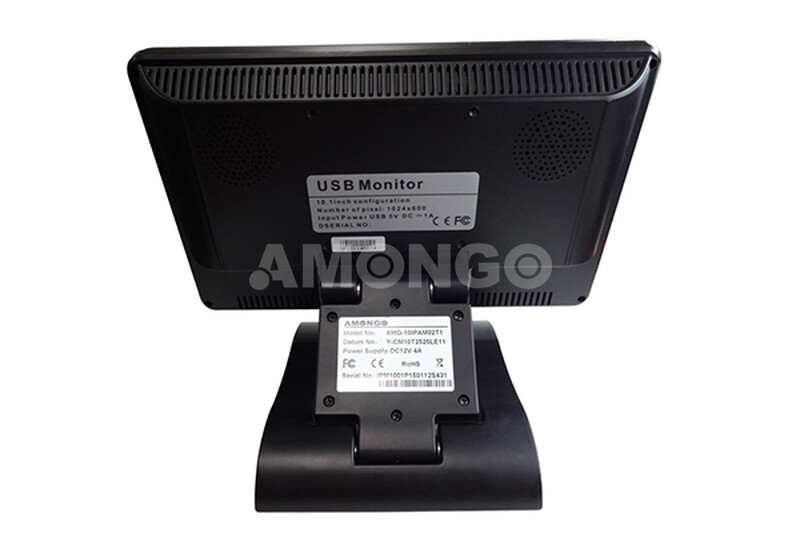

LCD -Monitor 10.1 Inch Flush Rear Mount

Model Name

AMG-10IPAM02T1

Screen Size

10.1"

Display Resolution (pixel)

1024x600

Contrast Ratio

500:1

Aspect Ratio

16:9

Touch screen(optional)

4-Wire Resistive Touch(5-Wire for Optional)

Brightness (cd/㎡)

250/450nits

Backlight

LED

Viewing Angles (CR =10)

140Hx90V

Power Consumption

≤8W

Dimension(VxHxT)

255x150x236(stretching)

Touch Interface

USB (RS232 for Optional)

Input Voltage

DC12V±15%

HDMI Format

480i,480p,576i,576p,720p,1080i,1080p(50/60Hz)

Operating Systems Support

Windows 7

Operating Temperature

-20～50℃

Storage Temperature

-30～65℃

Relative Humidity

5(%RH)～90(%RH)
