Model Name |
AMG-10OPHA03T2 |
|
Screen Size |
10.4" |
|
Active Display Area (mm) |
228.4 (H) x 175.5 (V) |
|
Pixel Pitch (mm) |
0.264 (H) x 0.264 (V) |
|
Display Mode |
Normally white |
|
Display Resolution (pixel) |
800x600 |
|
Contrast Ratio |
500:1 |
|
Display Color |
16.7M colors |
|
Brightness (CD/㎡) |
300 |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
150 (H); 110 (V) |
|
Response Time(Typ.Tr+Tf) |
30ms |
|

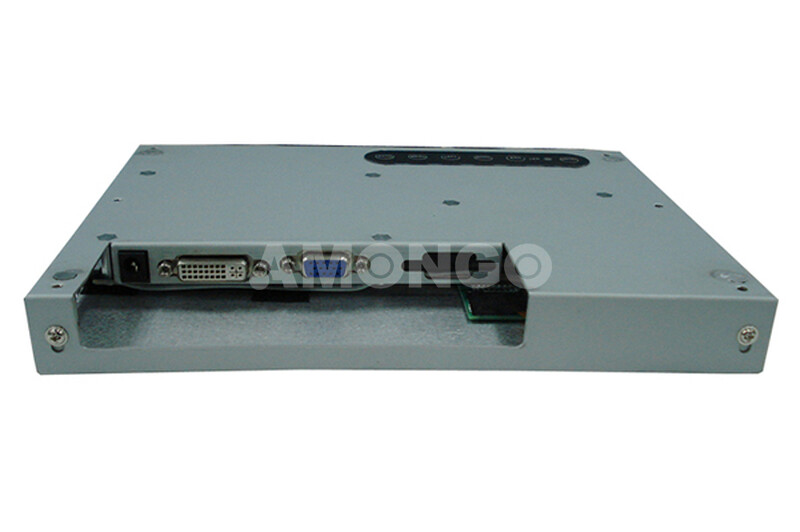

Signal Connector |
VGA/DVI |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
230.5x181.5x29.9 |
|
Operating Temperature |
-10～60℃ |
|
Storage Temperature |
-20～70℃ |
|
Relative Humidity |
5(%RH)～90(%RH) |
